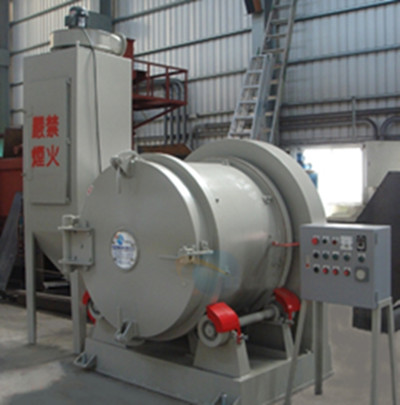

Rolling Drum Shot Blasting Machine
|
Application Possibilities
- Suit for small to middle size parts that is not damageable.
- Removal of moulding sand, burrs, mill, forge scale and rust.
- Be recommended for the treatment of small batch parts which can be tumbled in bulk loads.
Advantage
- Compact structure, installation without foundation pit.
- Simple designed, maximum uptime and minimum maintenance costs.
- Easy access and replacement of wear parts for simple and efficient maintenance.
Technical Data
Type Q31101 Q3110B Q3113 Q3113C Q3110BL
Productivity t/h 0.6-1.5 0.8-1.8 2.5-3.5 2.5-3.5 0.6-1.5
Workpiece Max Weight kg 15 15 20 30 15
Loading Weight kg 300 300 700 700 300
Drum Running Speed r/min 3.0 3.0 2.5 2.5 3.0
Shot Volume kg/min 100 150 160 160 120
Dedusting Air Volume m3/h 1000 2000 2000 2800 1800
Weight kg 3500 4500 6000 6500 3600
o
Why Choose Joint?
Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available across the world. We need your machines running in order to keep your business running.
Q: How do your machines compare with other big companies in this market?
A: We are up to date with the latest technology and improve our machines accordingly. With a history of more than 30 years, we have over 10,000 square meters workshop, 200 engineers and operators.
Q: How does your factory do regarding quality control?
A: Joint was certificated with ISO9001:2000 certification, with advanced CNC, laser cutting machines, machining center machines and milling machines. We always attach great importance to quality control from the very beginning to the end of the production. Every product will be fully assembled and carefully tested before it's packed for shipment.
Q: Do you sell only standard machines?
A: No, most of our machines are built according to customers specifications, using top brand name and components.
Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. The core of our company culture is honesty and credit.
