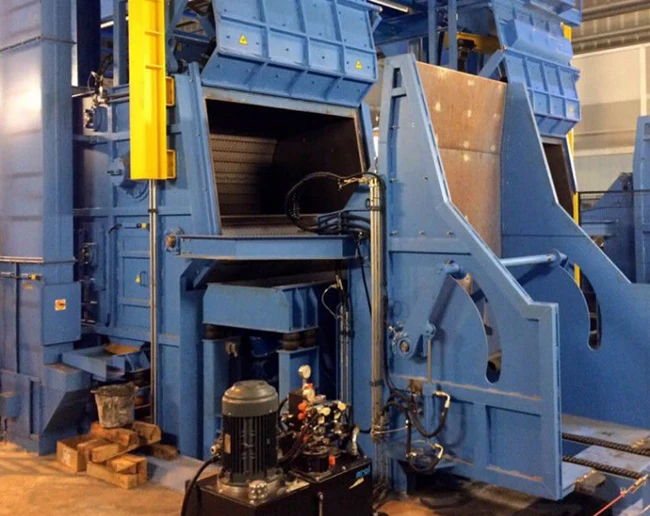

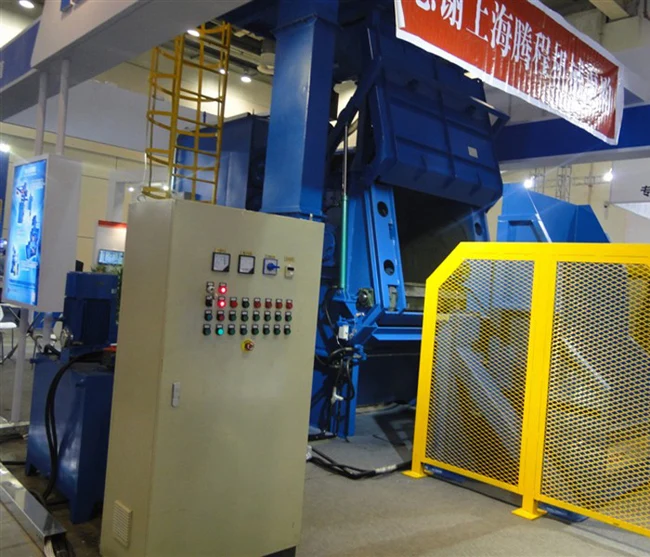

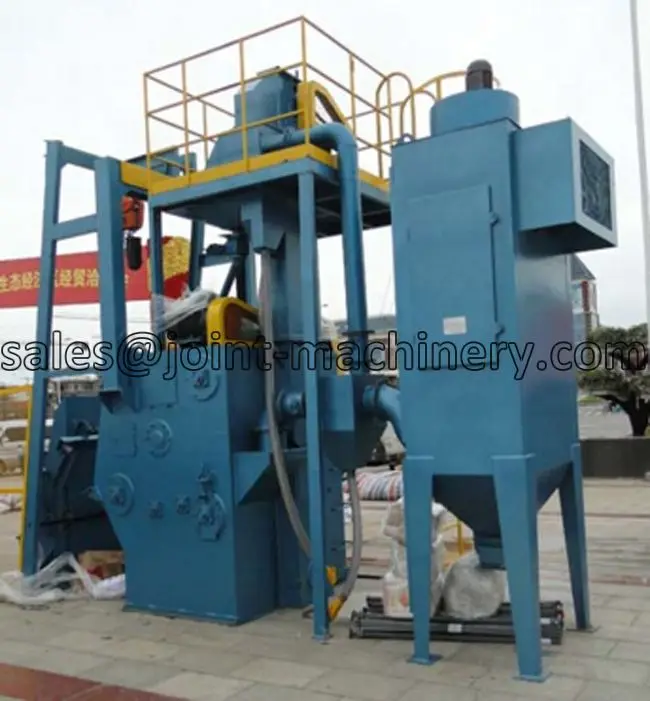

15GN/28GN Tumble Steel Belt Shot Blasting Machine
|
umble Blast Machines CleanerTM
As the user of patented barrel transport system, Joint factory has vast experience in developing tumble machines and solutions for the batch cleaning, descaling and processing of multiple parts.
The tumble machine spectrum ranges from 280 ltr. up to 1,500 ltr. useful load capacity.
The drum diameters are available from 600-1500 mm.
Max part load weight: 200-4000 kg.
Automatic loading systems and conveyors for transporting the components are optional.
Tumble belt batch machines can also be equipped with a steel belt (manganese steel) instead of a rubber belt. Thus equipped, the machine is suitable for components weighing up to 150 kg (3000 kg batch weight).
Find more detailed information about the offerings from each model below.
CleanerTM Tumble blast machines could keep components permanently in motion during the blasting process whereby they are continuously blasted from all sides and the media will be discharged from all re-entrant angles.
Industrial-quality motors, valves, and electric elements designed to maximize air flow and minimize energy required to operate the system.
-Tumbling machines with 1 – 3 turbines.
-Useful load capacity from 280-1,500 ltr.
-Single or interlinked operation.

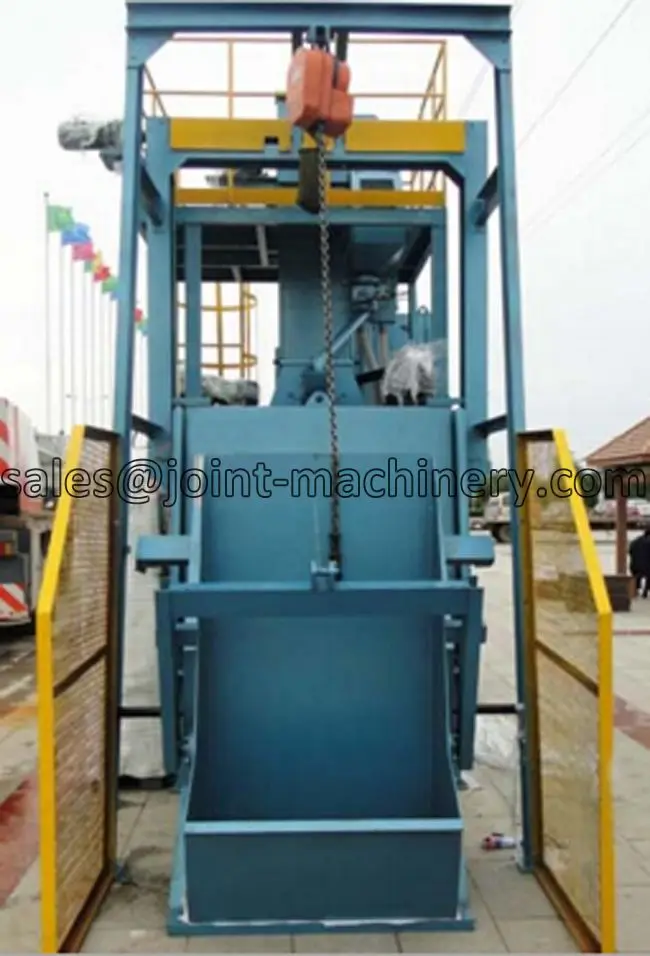

-Hydraulic, cable, or soft loading.
-High life time by material optimization and by use of air separators.
-Proven latch shape, optimum rolling, short process times.
|
Model |
Q15GN |
Q28GN |
|
Size of the roller(mm) |
1090*1245 |
1245*1778 |
|
Diameter of roller (mm) |
1092 |
1250 |
|
Working cubage(m3) |
0.43 |
0.79 |
|
Unit piece weight(kg) |
227 |
363 |
|
Size of working piece(mm) |
1000 |
1000 |
|
Loading weight(kg) |
800 |
3500 |
|
Shot impelling volume( kg) |
480 |
340*2 |
|
Impeller head power(kw) |
30 |
22 |
