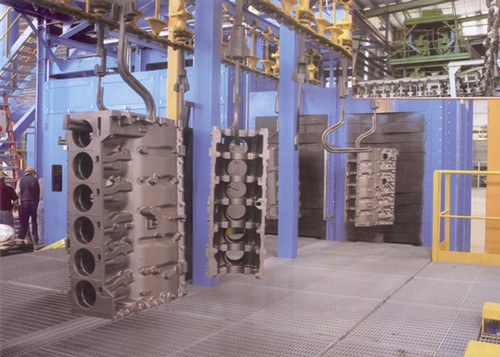

Monorail Shot Blasting Machine

Application Possibilities

- Blasting of batch sensitive parts which cannot be tumbled in bulk loads.

- Recommended for the treatment of particularly complex, heavy or large parts.

- Removal of rust, moulding sand, burrs, mill and forge scale.

Advantage

- The most flexible and economical machine types for castings processing.

- Less use of space, shorter transport distances and no intermediate stocking requirements.

- Automatic production sequence to improve production rate and reduce manufacturing costs.

Technical Data

Type Q383F Q383C Q384C Q385 Q483 Q485 Q583

Productivity hanger/h 38 30-60 70-80 75 10 10 30-60

Hanger Running Speed m/min 0.8-2.6 0.5-0.7 0.8-0.9 0.7 2.4 7.3 adjustable

Hanger Load kg 100 300 400 500 300 500 300

Hanger Distance mm 800 800 800 800 2560 2560 1000

Shot Volume kg/min 6*125 4*250 6*250 5*250 2*250 3*250 4*250

Dedusting Air Volume m3/h 20000 18000 26500 23700 6000 10000 18000

Dimensions of Workpiece m ￠0.4*0.8 ￠0.5*1.2 ￠0.7*1.5 ￠0.7*1.5 ￠1.0*1.4 ￠1.2*1.7 ￠1.0*1.5

Power kw 80.75 75.30 122.60 106.75 38.75 58.43 127.25
