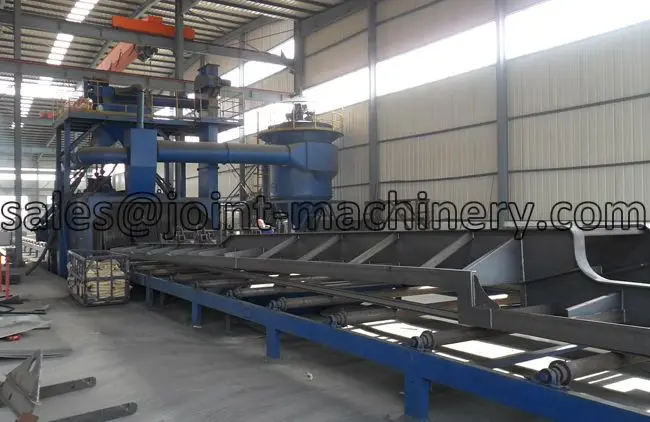

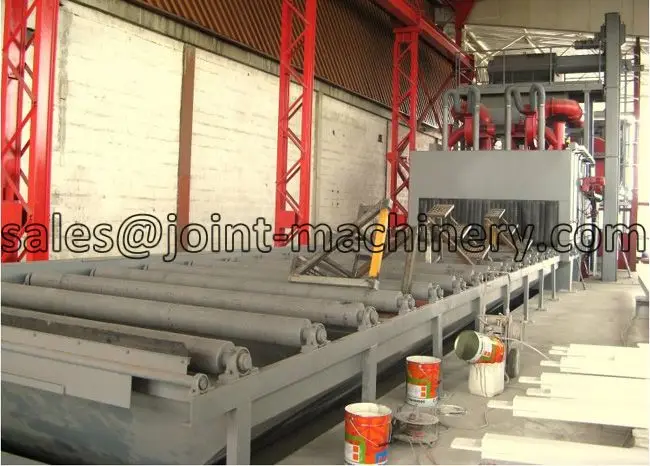

Angle/Channel Shot Blasting Machine
|
Application Possibilities

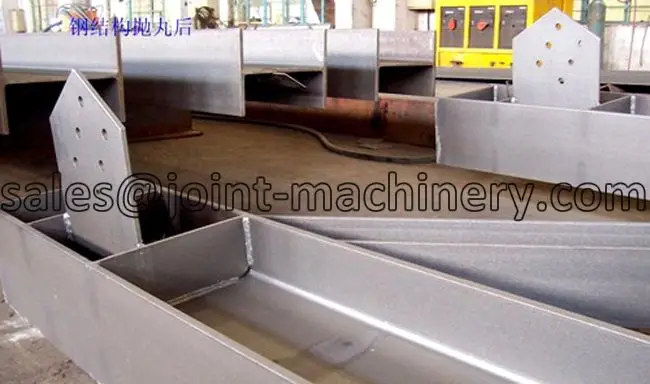

- Heavy and large H beam structural steel descaling.
- Long and round material derusting.
- Strip, wire, bars, billets and miscellaneous weldments preparation.
Advantage
- Floor mounted “BE” air wash separator for ease of observation and maintenance.
- The blast compartment and floor are consist of manganese plating to ensure longevity.
- Fully automatic design to provide high volume production and cost effective performance.
Technical Data
Type Q698 Q6915 Q6920 Q6930 Q6940
Length of Workpiece mm 1.2-12.0 1.2-12.0 1.2-12.0 2.4-12.0 4.5-18.0
Max. Width of Workpiece mm 800 1500 2000 3000 4000
Max. Height of Workpiece m 0.3 0.4 0.4 0.8 0.4
Processing Speed m/min 0.5-4.0 0.5-4.0 0.5-4.0 0.5-4.0 2.0-8.0
Shot Volume kg/min 8*120 4*250 6*250 6*360 8*360
Why Choose Joint?
Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available across the world. We need your machines running in order to keep your business running.
Q: How do your machines compare with other big companies in this market?
A: We are up to date with the latest technology and improve our machines accordingly. With a history of more than 30 years, we have over 10,000 square meters workshop, 200 engineers and operators.
Q: How does your factory do regarding quality control?
A: Joint was certificated with ISO9001:2000 certification, with advanced CNC, laser cutting machines, machining center machines and milling machines. We always attach great importance to quality control from the very beginning to the end of the production. Every product will be fully assembled and carefully tested before it's packed for shipment.
Q: Do you sell only standard machines?
A: No, most of our machines are built according to customers specifications, using top brand name and components.
Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. The core of our company culture is honesty and credit.
